VIO F1, among VIO Series, a NDAA compliant payload featuring a 4K zoom EO sensor, a 640 x 512 radiometric thermal camera from Teledyne FLIR and an integrated 2400m laser rangefinder. Gremsy's VIO F1 is proudly included as part of the Thermal by FLIR program which allows users to benefit from reliable thermal imaging solutions for various applications such as inspection, industrial diagnostics, public safety.
Designed by Vietnamese Vio F1 & Vio G1

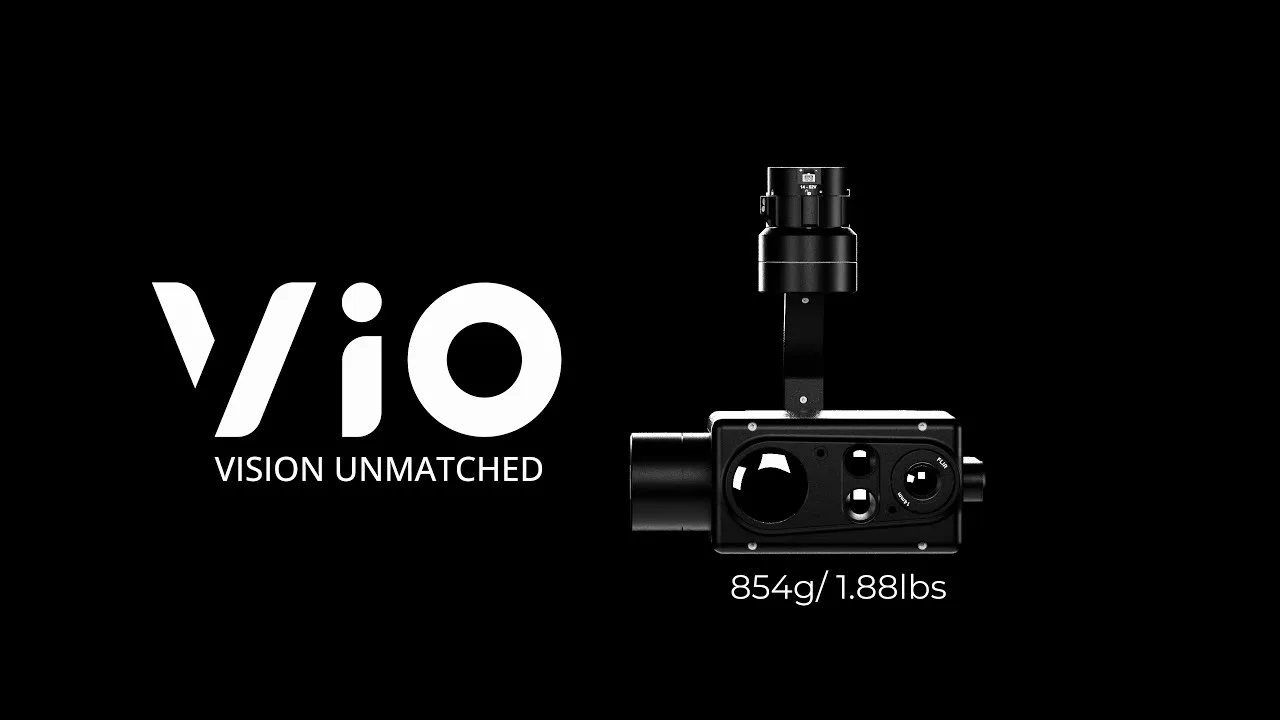

Plug-and-play Industry-leading size, only 854g
MAVLink Drone Support
4K Resolution Zoom sensor
640x512 Radiometric Thermal sensor 8x digital zoom
Laser Rangefinder up to 2400m
Videos

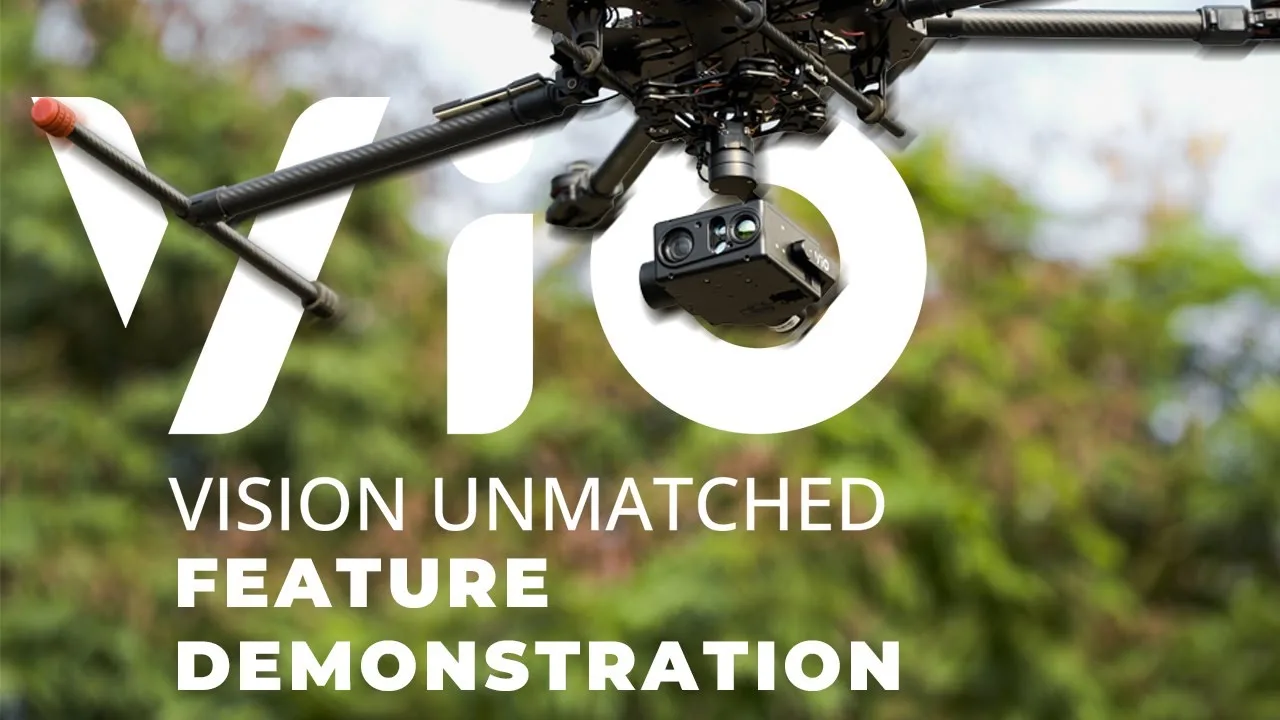

Versatile Lightweight EO/IR Payload
- 30x Super Resolution Zoom, 240x Max Zoom
- 8.51 MP 1/2.5" CMOS
- Focal Length: 4.4mm to 88.4mm
- Resolution: 4K@30fps
- 1x to 8x Zoom
- Fixed Focus, 32° HFOV, 14 mm EFL
- Resolution: 640×512@60Hz
- Thermal Sensitivity: ≤ 50mk
- 0 - 2400m (1Hz)
- 0 - 1200m (10Hz)
- Precision: 0.1m-0.5m

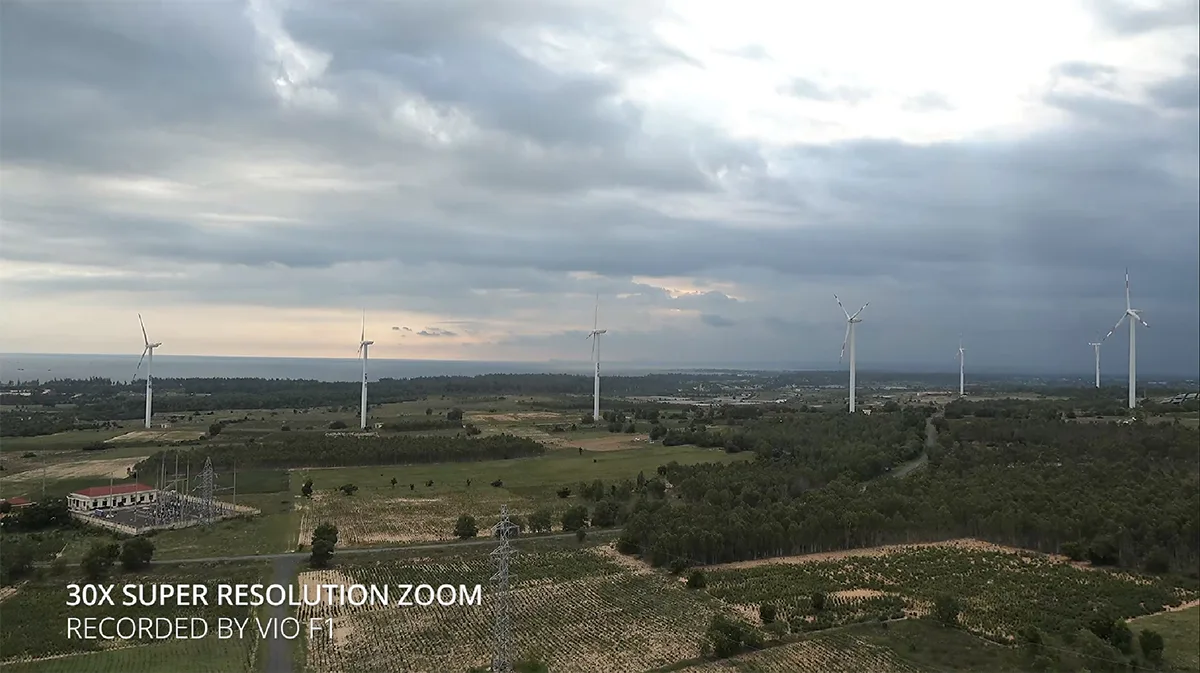

Powerful Zoom Capability
Vio offers the capability to zoom in both thermal and optical modes, catering to various applications such as mapping, inspection, surveying, and public safety tasks.

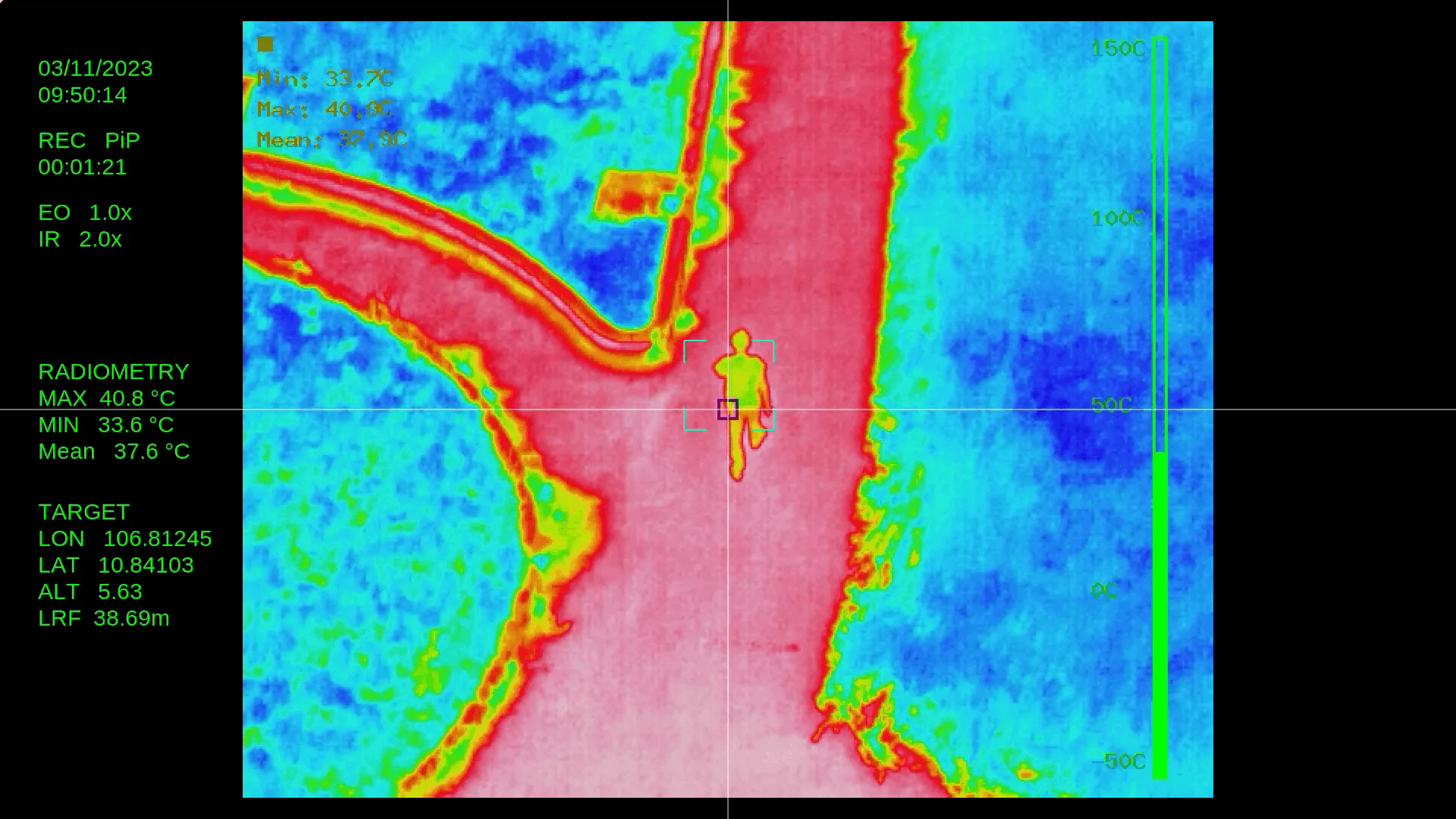

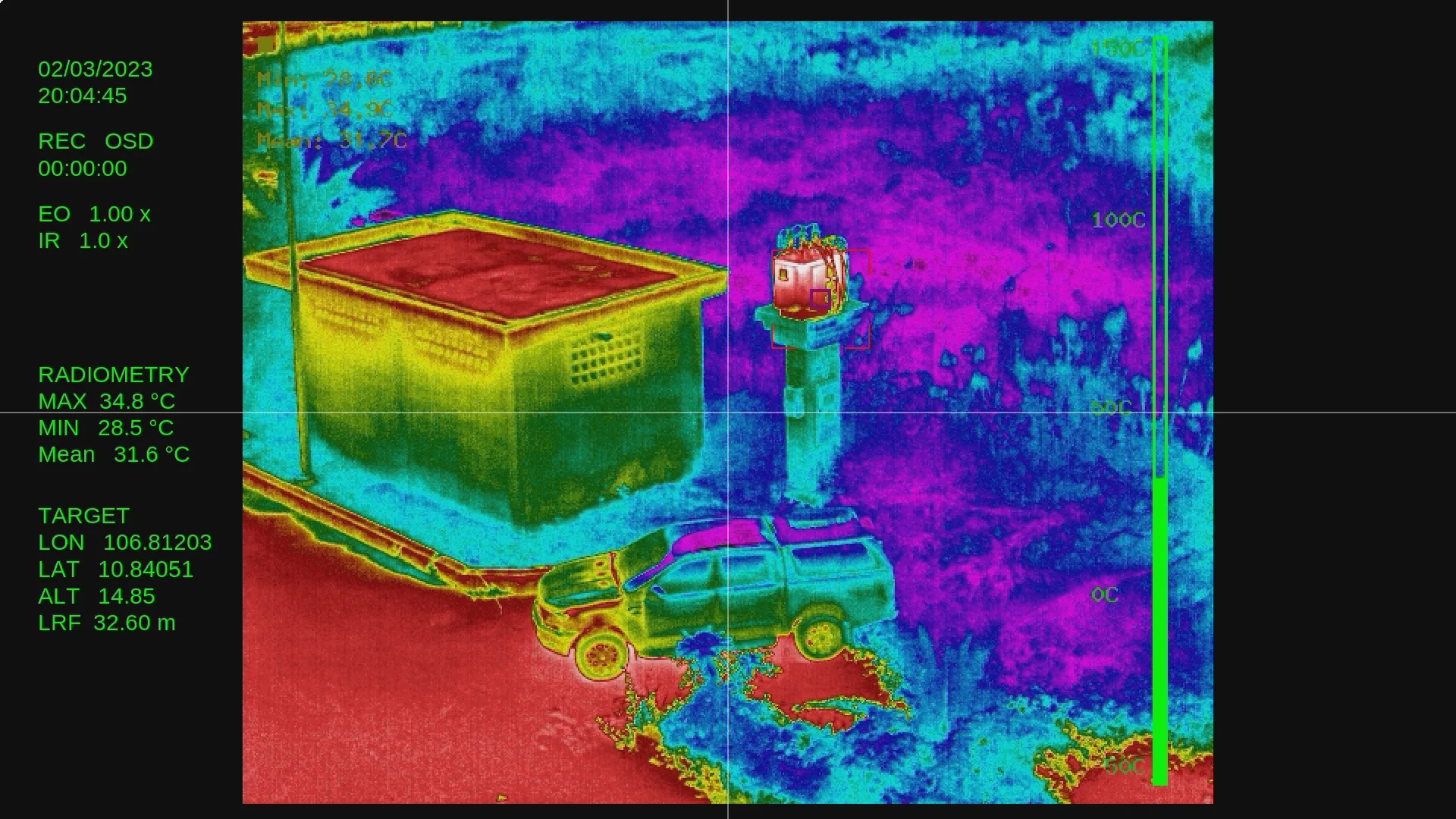

Radiometric Thermal Imaging
Vio offers two versions with advanced 640x512 radiometric thermal sensors, featuring a remarkable sensitivity of <=50 mK, delivering precise temperature detection. Well-suited for any demanding industrial applications: assets & infrastructure inspection, disaster relief, firefighting, search & rescue, urban safety and more.

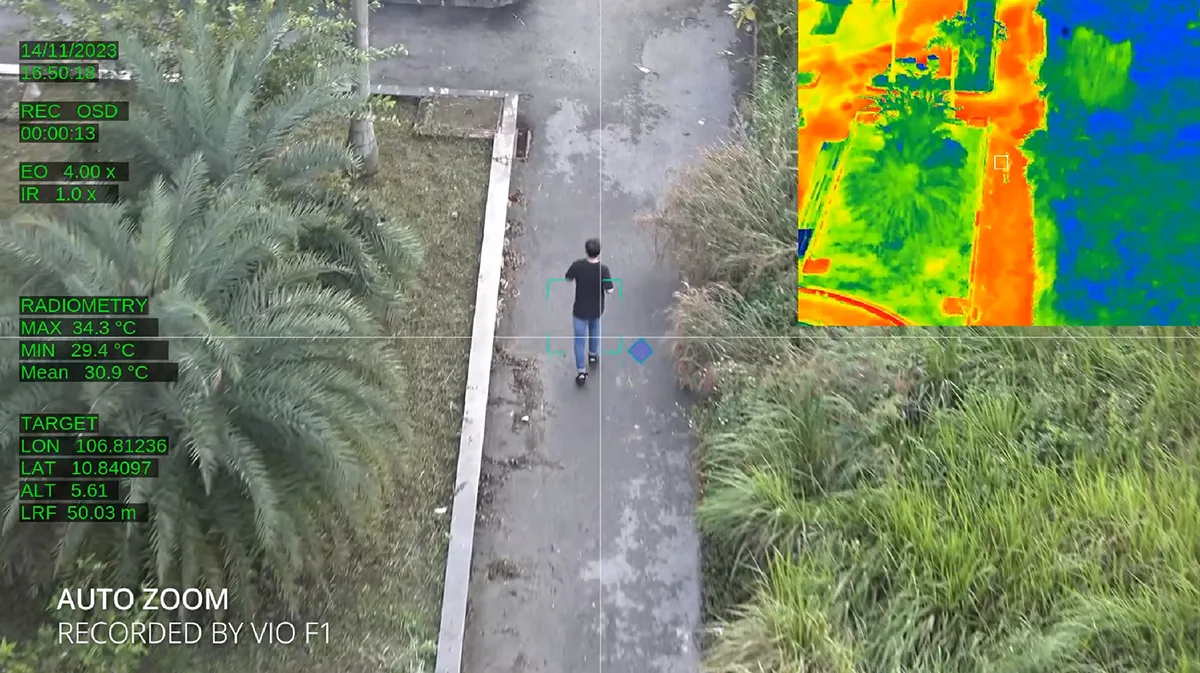

EO Object Tracking
Easily auto-tracks and auto-centers your selected object, ensuring it remains perfectly framed even while zooming or adjusting the gimbal position.

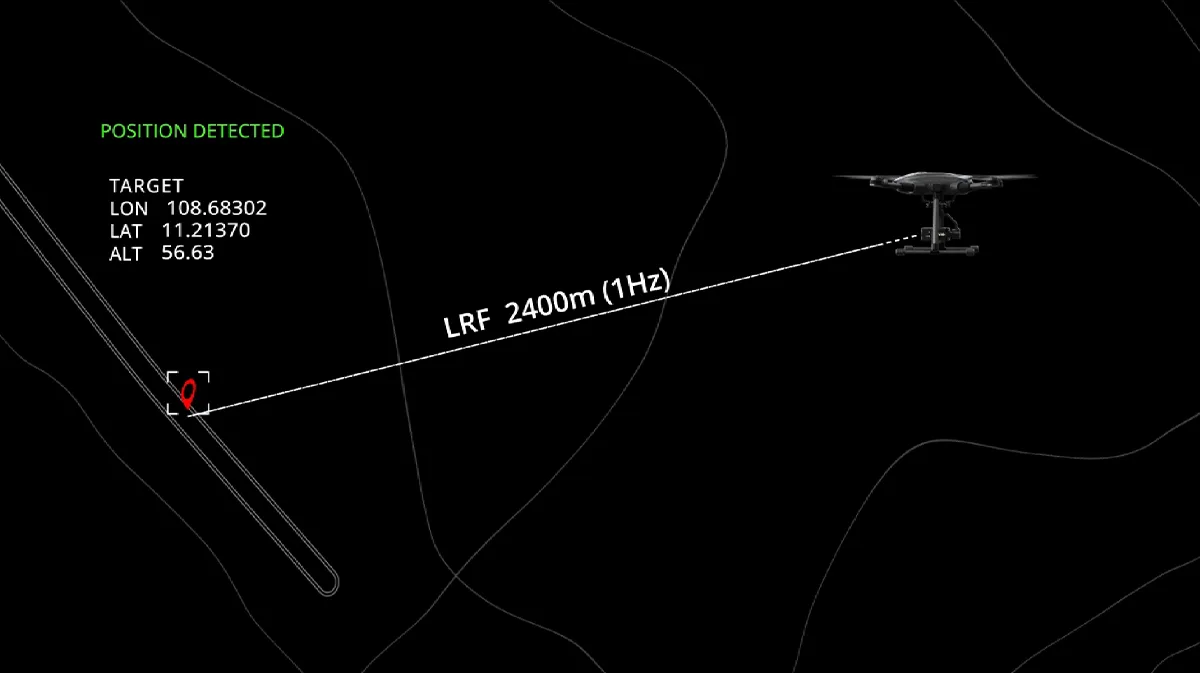

Laser Rangefinder & Pinpoint
Vio features a highly precise (0.1-0.5m) laser rangefinder, recommended for optimal object detection at 1200m at 10Hz, but capable of reaching up to 2400m at 1Hz. Combine the aircraft's GPS to detect the exact position of the targets for rescue missions.

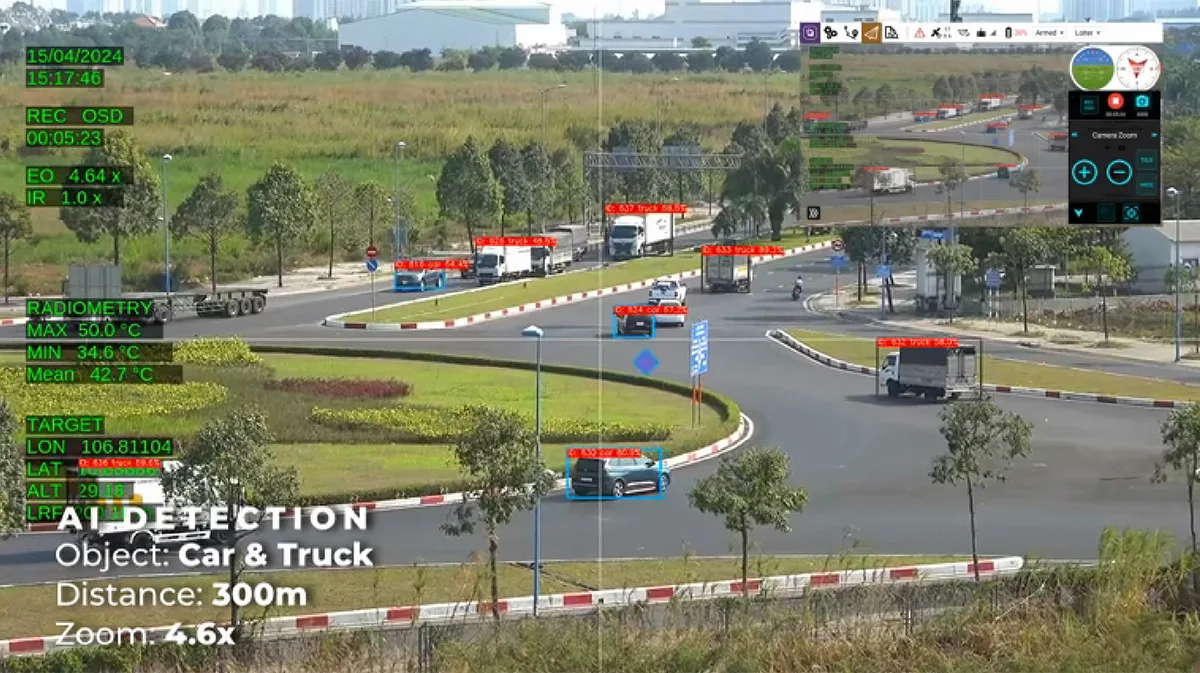

AI-Driven Features Unleashed
*For users who desire to further expand the range of detectable objects, please contact us for additional software updates and options.
User Interface

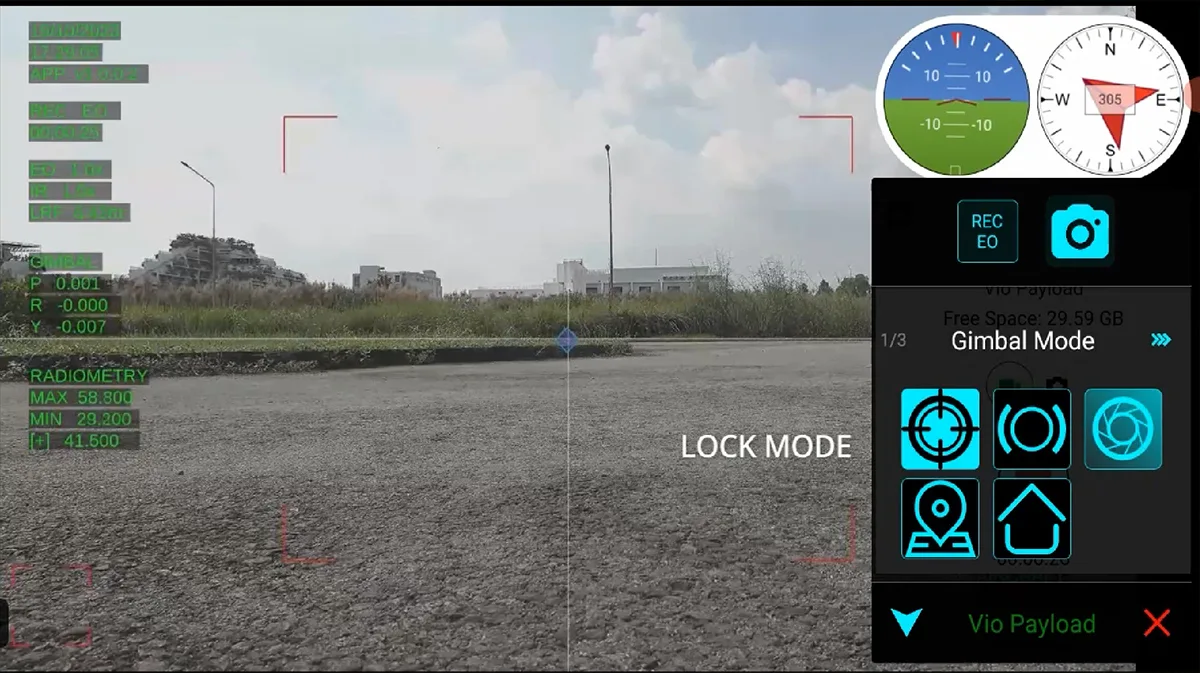

Payload Assistant App
Gremsy introduces Payload Assistant app, an overlay software that facilitates user operation of Vio with ease, such as zoom in, select tracked objects by touching the remote screen, alter gimbal modes, take images, view videos, and more.

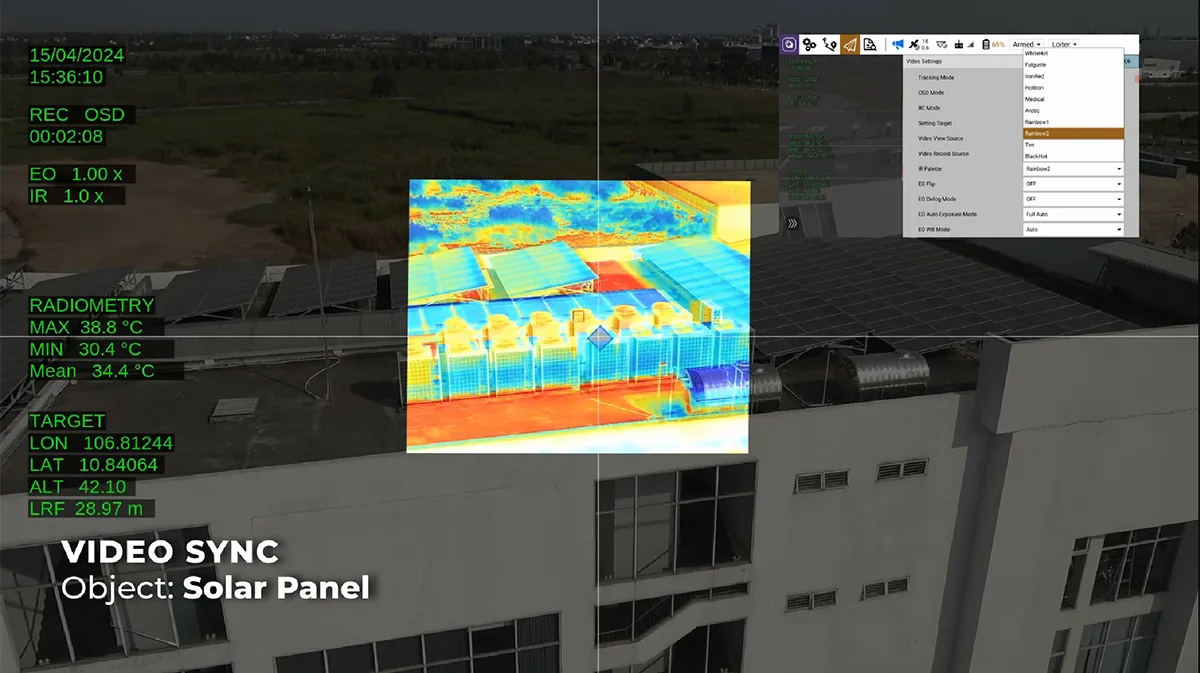

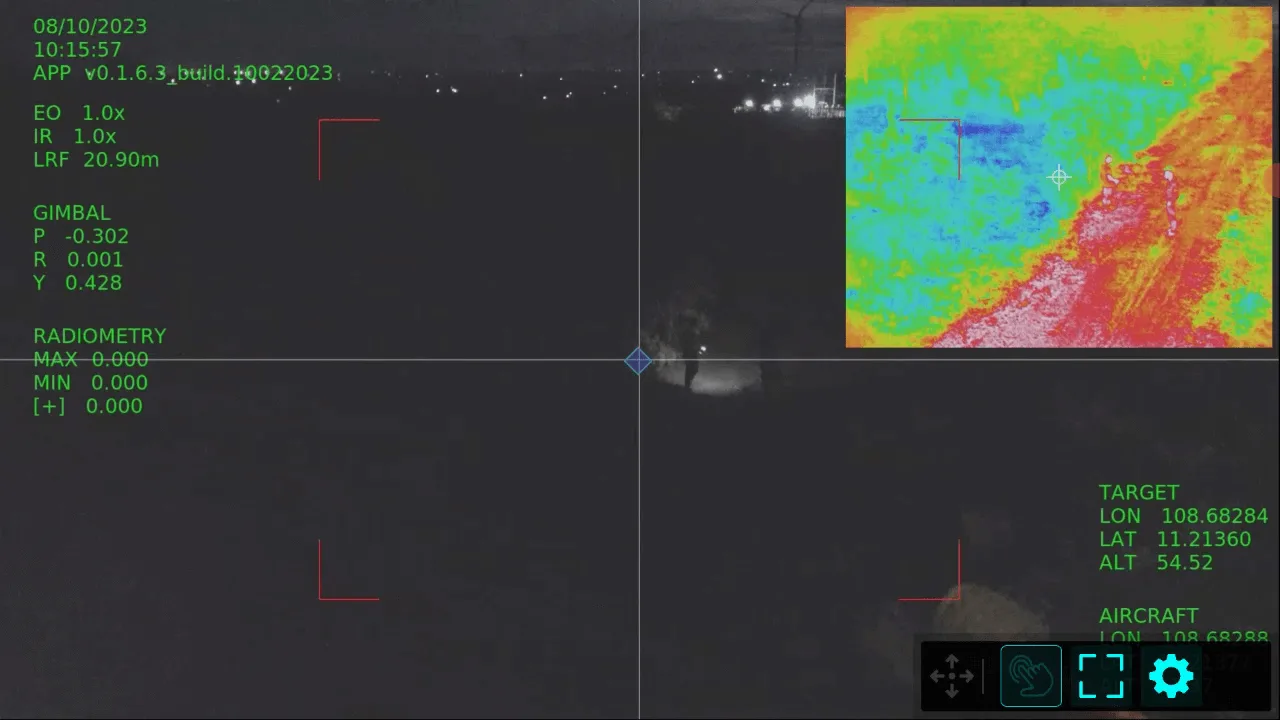

Camera View Mode
Equipped with two integrated sensors, you can seamlessly engage the advanced functionalities of the camera, facilitated by a diverse and intuitive viewing mode.
More Functionalities
Enable data embedding into your images
Support stream video via HDMI/Ethernet RTSP
Access payload info and control it using available libraries for specific applications
Easily access and retrieve media files from a device using Ethernet
Advanced Chip
Empowering
Feature Expansion
Our high-performance Vio processor, NVIDIA® Jetson Xavier™ NX, seamlessly executes the functionalities of Vio and also empowers to engineer extensions for a diverse array of features. For inquiries regarding bespoke projects harnessing these capabilities, please feel free to reach out to us.
Contact UsChoose from two models of Vio series, Vio F1 and Vio G1, for unmatched performance and precision
- Sony 4K Block Zoom Camera
- Flir Boson 640 Radiometric Thermal Core, 14 mm (EFL)
- *Included as part of the Thermal by FLIR program
- Up to 2400m LRF
- Sony 4K Block Zoom Camera
- 640 Radiometric Thermal Core, 19mm (EFL)
- Up to 2400m LRF
