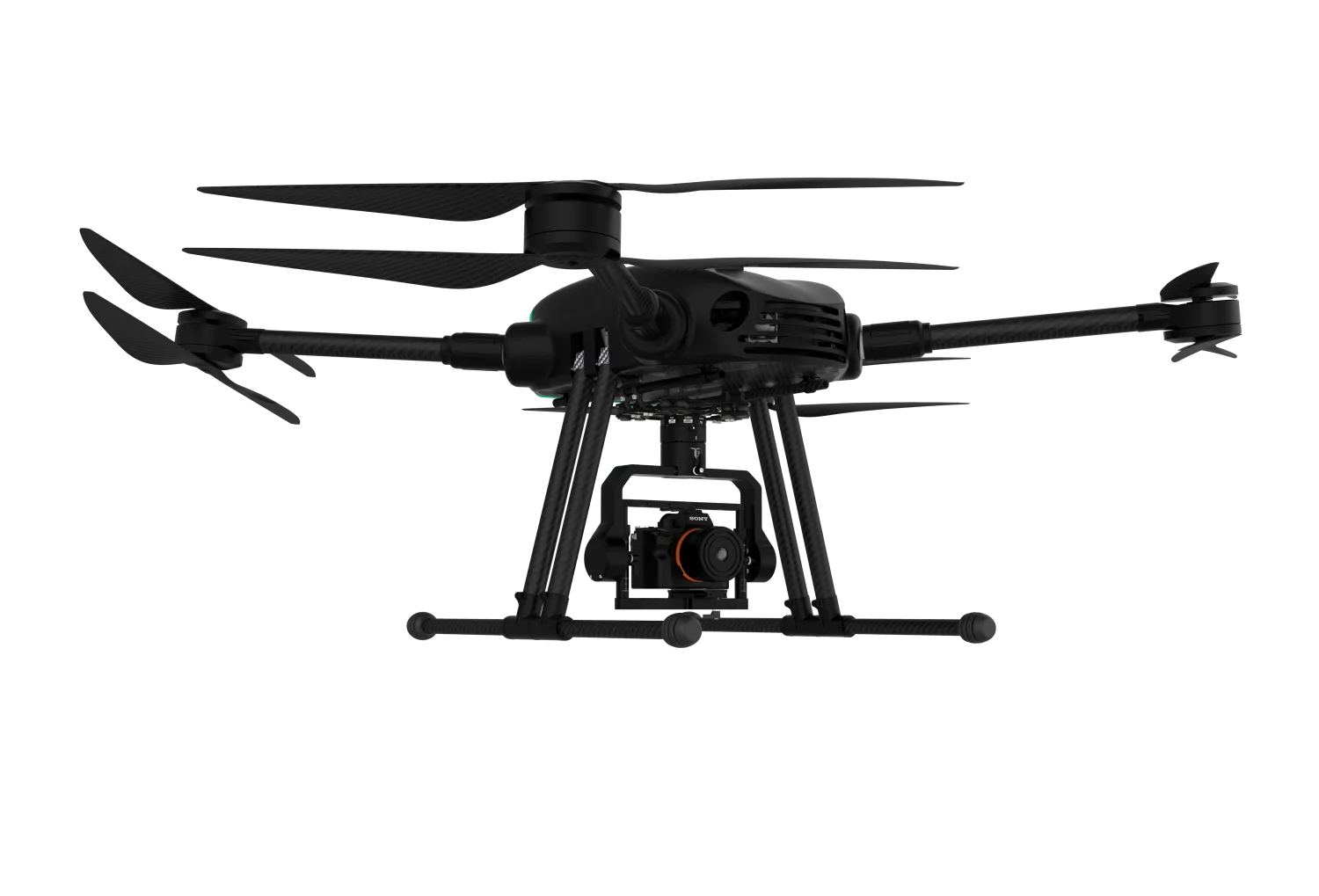

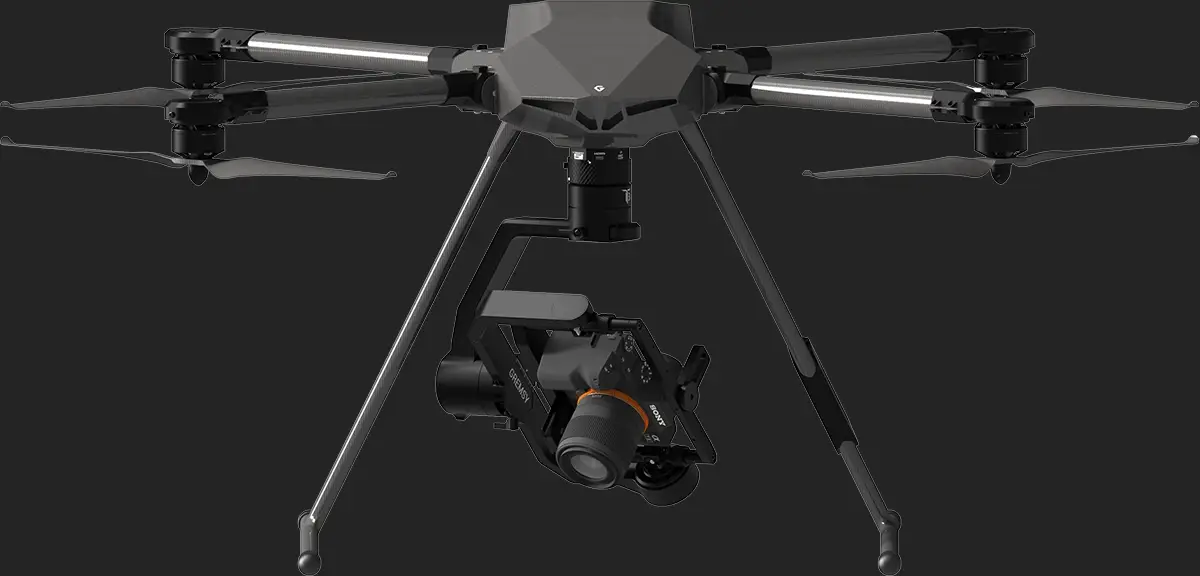

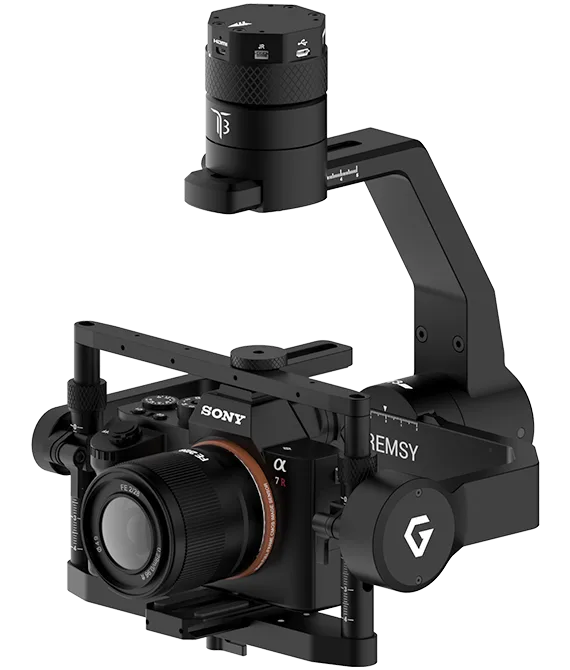

Gremsy T3V3 is the most advanced 3-axis camera stabilizer ready to fly with many industrial cameras for inspection, mapping and other demanding applications. Featuring onboard HDMI and AUX ports, the T3V3 ensures simple and clean setup as well as increased portability for your system. Not only providing built-in bluetooth functionality for optimal comfort during your setup control, we make your plug & play installation easier within 2 seconds. With Gremsy T3V3, adapting to various aerial missions has never been so fast and straightforward.
HDMI integrated on the gimbal enables clean and straightforward setup while ensuring ability to transmit excellent video quality.
With HDMI Hyper QR, the inconvenience is taken away. Just push in, twist to lock, and it's done.
Thanks to built-in 14.5V Power Regulator in Hyper QR, the T3V3 can receive power directly from flight battery to convert to a 14.5V power supply.

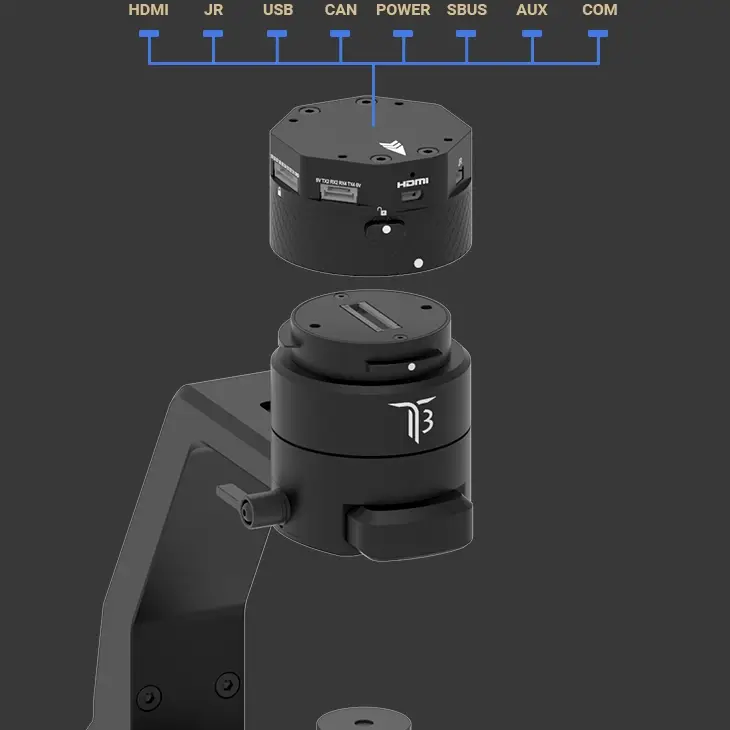

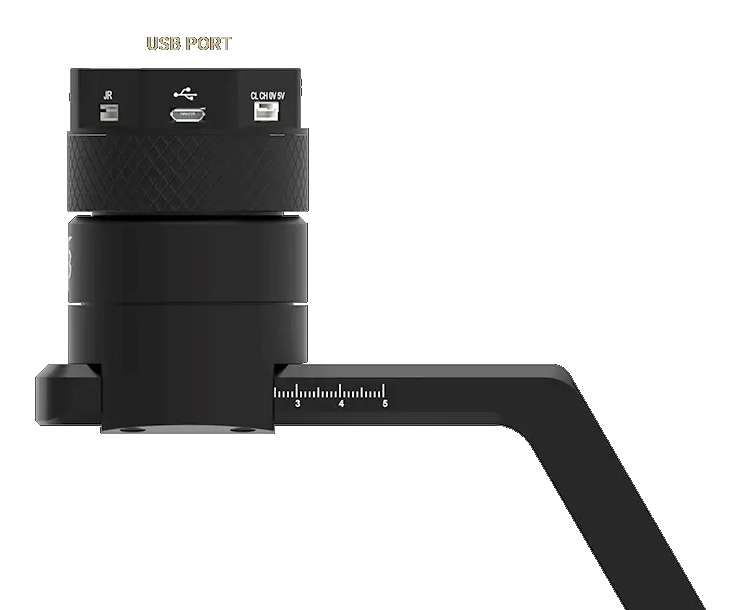

Intuitive hardware interface including POWER, CAN, COM, SBUS, JR, USB, AUX and HDMI ports has relocated on QR to quickly interface with multiple devices such as 3rd party flight controller, remote control, auxiliary I/O and power your ideal system of cameras/accessories.
Aux port with S1-S9 optional signals for users to connect to other devices such as AV signal or camera trigger for additional functionality.

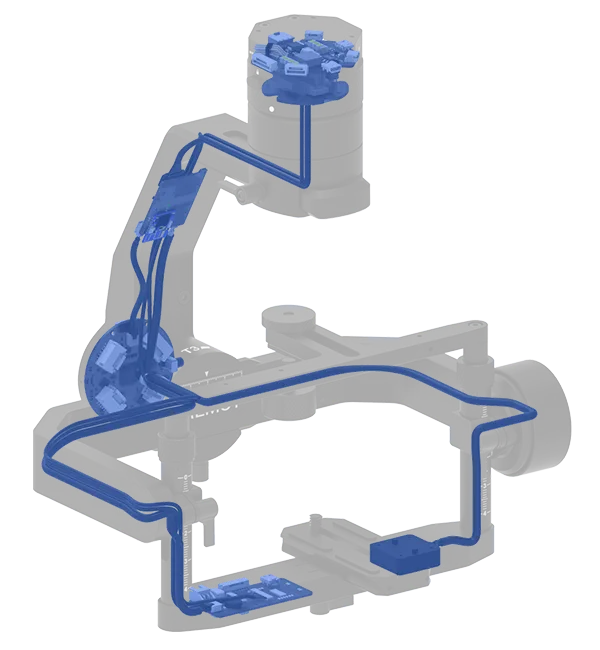

INTERNAL WIRING
Remove the need to plug in many cables, the T3V3 makes it trouble-free to carry out your aerial missions.

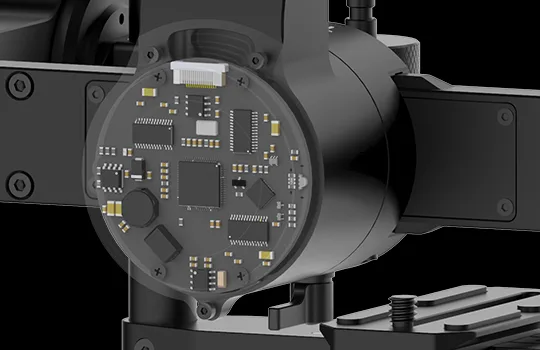

CONTROLLED IMU
The T3V3 uses 3-axis accelerometer and 3-axis gyroscope IMU to ensure that it performs accurately and efficiently. Heated and temperature controlled IMU sensor is protected by an aluminum-made box. This allows for a flawless operation in too high or too low ambient temperatures.
gimbal controller
The gMotion Controller, designed and made by Gremsy offers unparalleled professional camera stabilization properties at 32-bit level. Sensor data and motors correction are updated as fast as 2000 times per second to enable incredibly smooth footage.

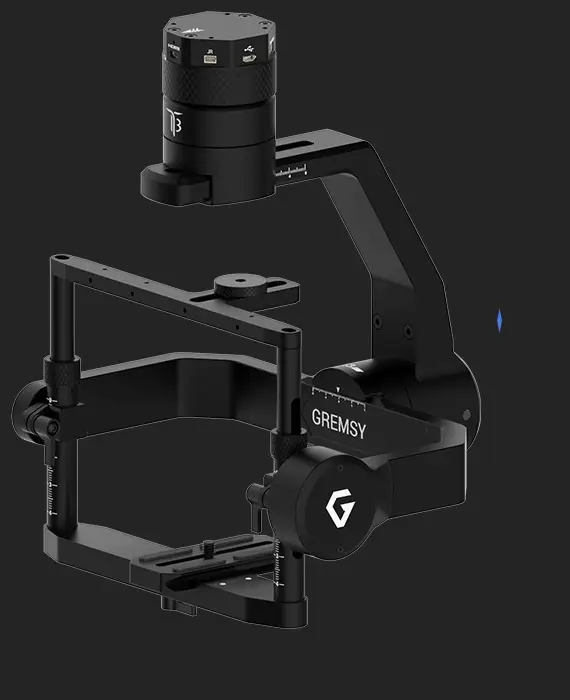

Gremsy T3V3 has a mid-size design, the weight of 2.65 lbs for a maximum payload of 3.7 lbs.
WEIGHT / MAXIMUM PAYLOAD
2.65 lbs / 3.7 lbs
DIMENSION (W x D x H):
237 x 184 x 288 mm
CAMERA CASE (W x L x H):
152 x 100 x 120 mm
Wiris
Canon 6D Mk I, Mk II
Pentax
Nikon D810, D800, D500
Panasonic GH3, GH4, GH5
Sony A6000, A6300, A6500
Sony A7S (mk I - III)
Sony A7r (mk I - V)
Sony A9 (mkI - II)
Phase One IXM50/100
UMC-S3CA
FUJIFILM X-T
No need to manually set up the home position every time you boot up the gimbal. Gremsy T3V3 provides an easy one step plug and play installation that takes only 2 seconds to complete.
CONNECTION
Gremsy T3V3 has a mid-size design, the weight of 2.65 lbs for a maximum payload of 3.7 lbs.

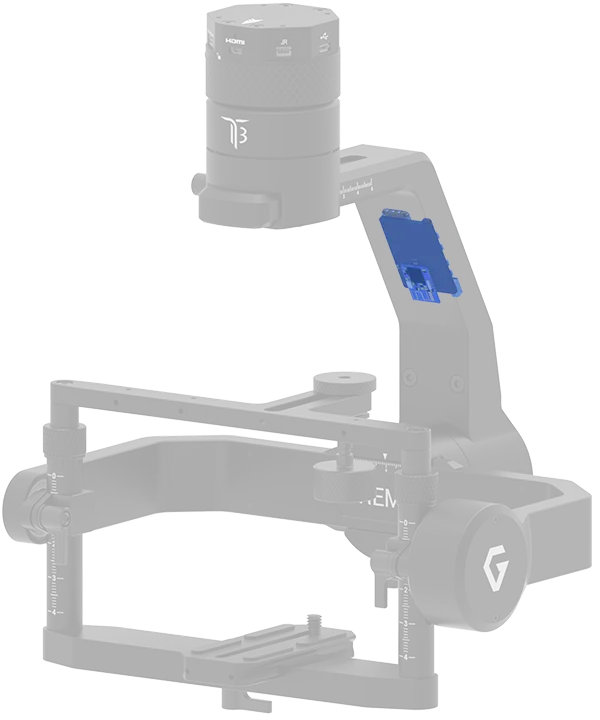

Built-in Bluetooth functionality allows users to conveniently control the gimbal via smartphone, tablet or other suitable devices.
*Wifi module does not support this model.
