ZIO - Gremsy Zoom Payload

ZIO

View Specs

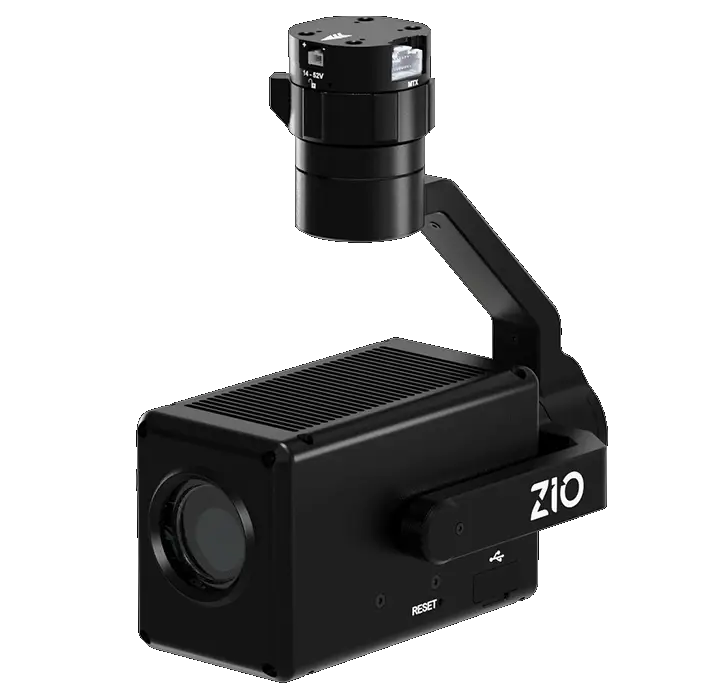

4K RESOLUTION STABILIZED PAYLOAD

Zio is a high-resolution zoom payload that combines a Sony sensor with high-stabilized three-axis gimbal technology. It enables industrial inspectors and surveyors to zoom into objects of interest and effortlessly transmit video at 4K resolution, ready to be utilized for a variety of inspection, surveying, and public safety jobs.

Watch Video

Total weight
480g (1.06 lbs)

30× Super
Resolution Zoom

Optical: 20x | Digital: 12x

High Resolution
Sensor

Video stream over
HDMI/Ethernet

MAVLink Support

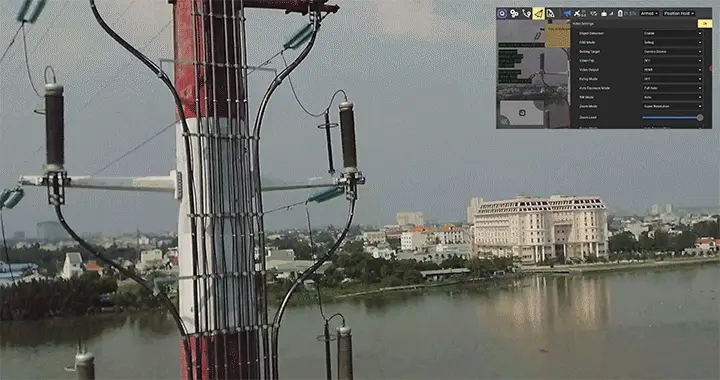

30X ZOOM CAPABILITY FOR ENHANCED CAPTURE

With optimal zoom levels from 1x to 30x, you can access hard-to-reach areas and obtain a unique view of your objective.

The Zio's sensor offers 4K resolution for high-quality video and image capture, ideal for a variety of demanding applications.

VIDEO STREAM OVER HDMI & ETHERNET

Zio enables video stream to your remote controller (with QGroundControl) via HDMI and Ethernet:

HDMI output: 1920x1080 (60p) | 60 fps
Ethernet output: RTSP 1280x720 (30p) | 30 fps

MAVLINK SUPPORT

Fully compatible with MAVLink, Zio is ready to be seamlessly integrated with drones powered by PX4, Ardupilot. The Zio also gives users advanced control of the camera and gimbal from the remote controller.

BUILT FOR INDUSTRIAL APPLICATIONS

Optimal design and advanced functionality make Zio excellent for a range of industrial missions like inspection, roof surveys, power-cable checks, and site-progress monitoring and so on.
