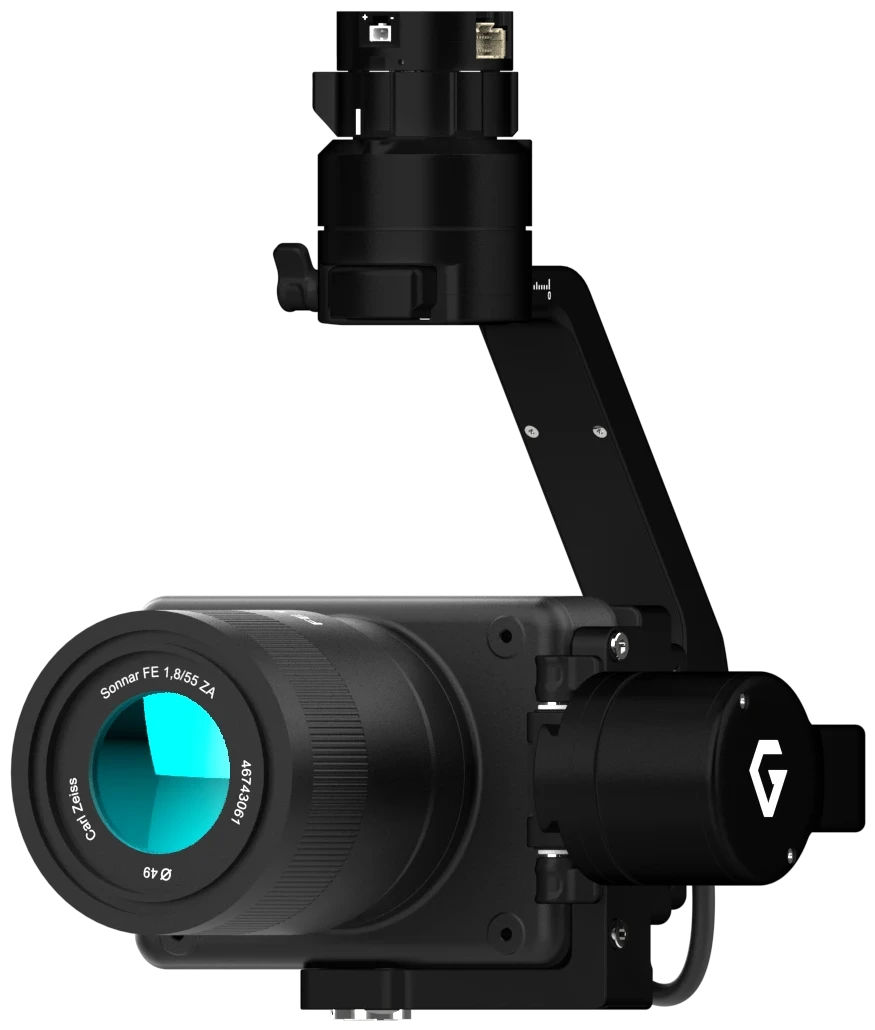

Pixy LR S-PORT V2
Streamlined Workflow with Smarter Geotagging

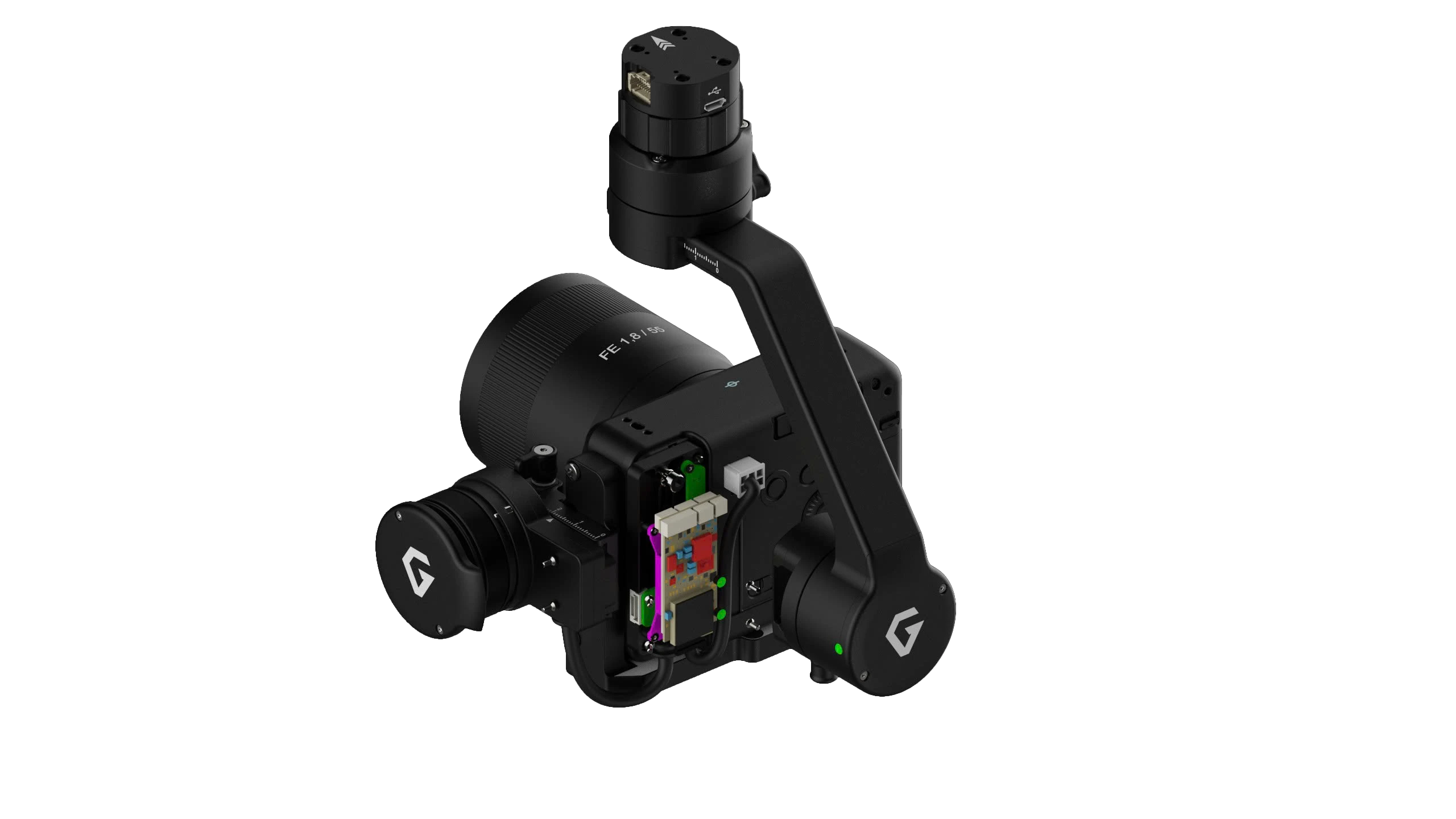

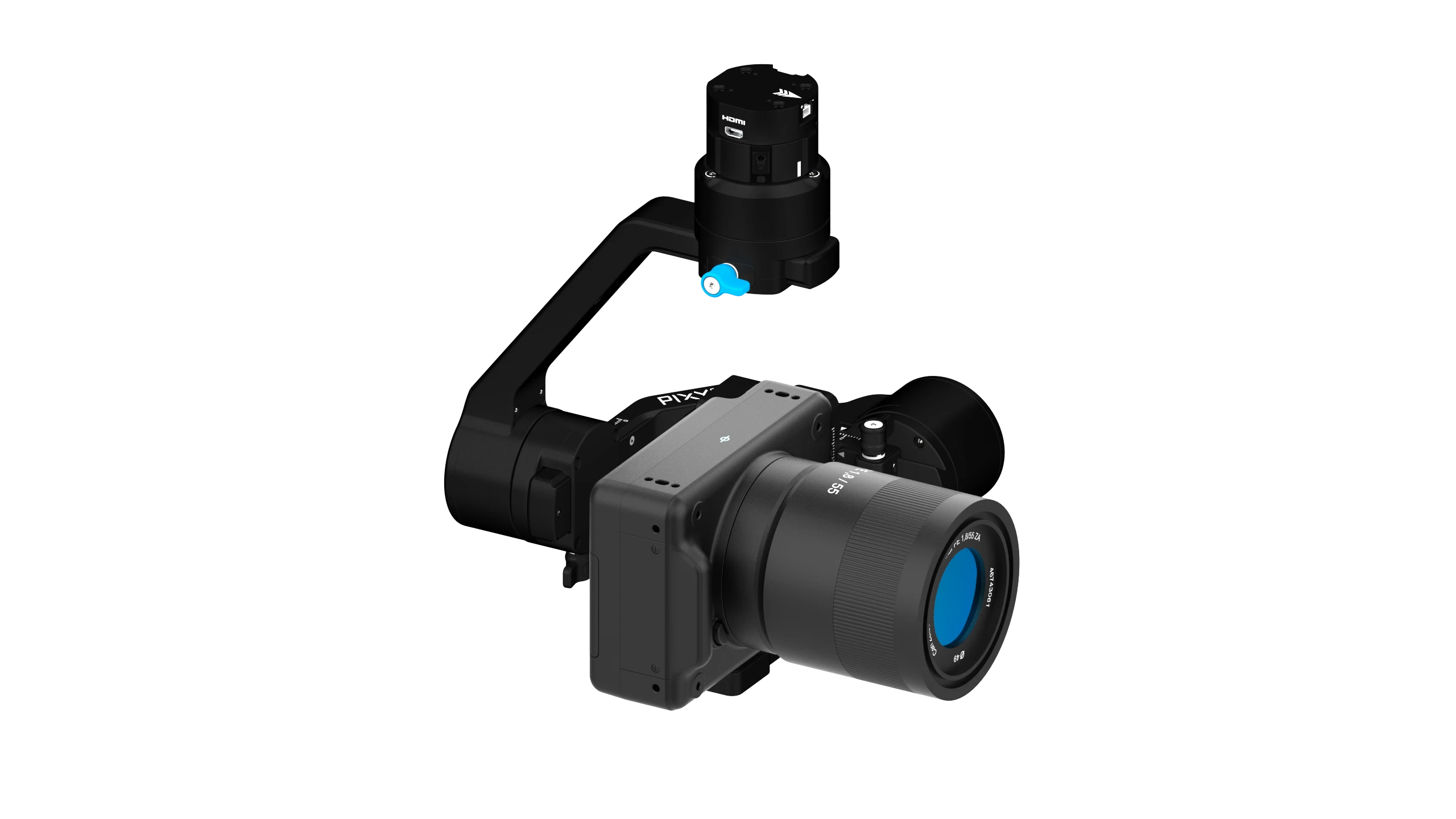

Meet the Gremsy Pixy LR S-PORT V2 - a highly integrated gimbal system engineered to simplify field operations for industrial professionals. Designed specifically for the Sony ILX-LR1 camera, the Pixy LR S-PORT V2 embeds the TAG-E geotagging module directly into the gimbal's core architecture.

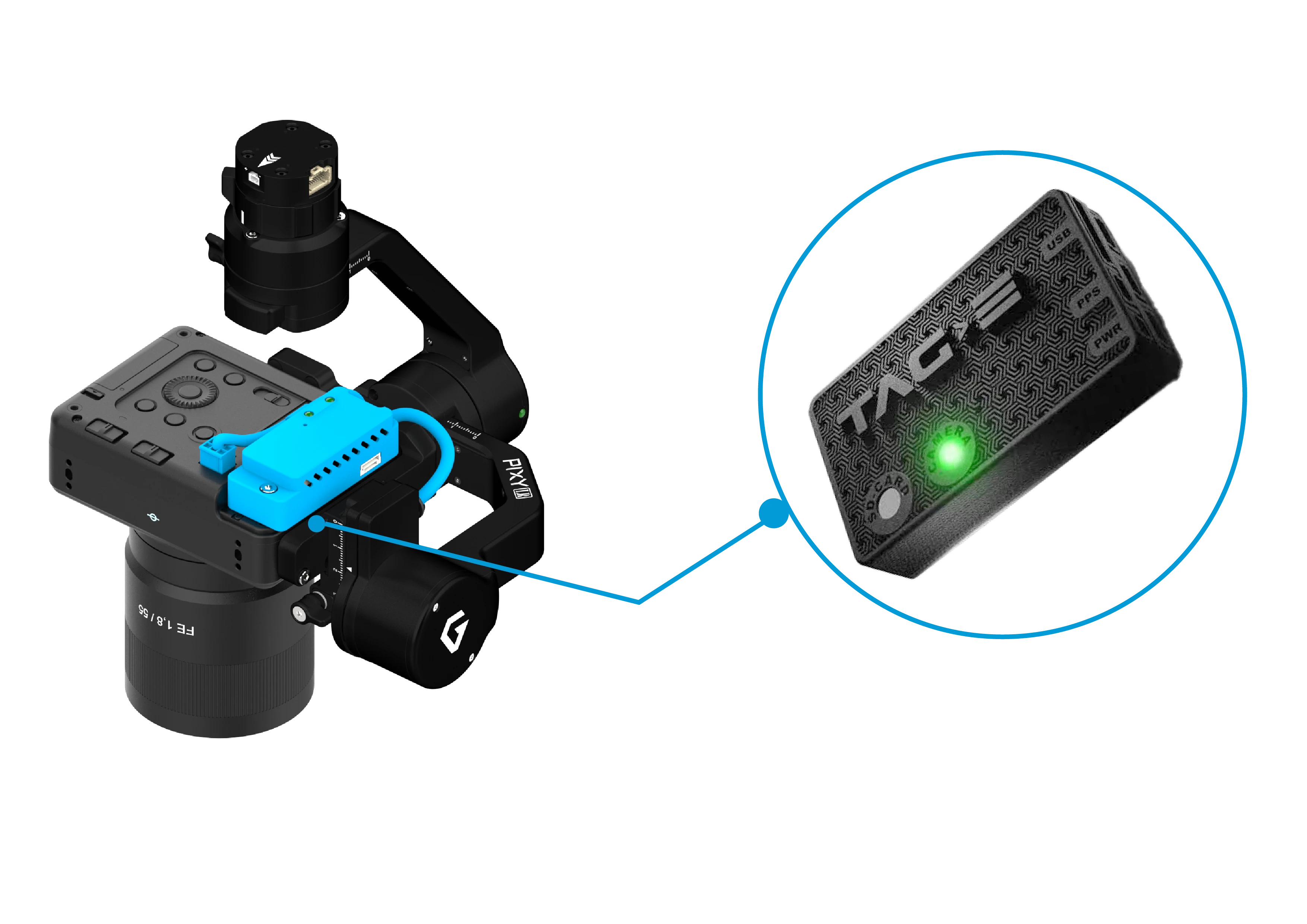

Built-in TAG-E Module
Go beyond basic geotagging. The built-in TAG-E module captures precise GPS/RTK position, camera orientation, flight time, and rangefinder data at the moment of capture - embedding rich metadata directly into every image.
Shared S-PORT Hyper Quick Release Ecosystem
Designed specifically for devices featuring the S-PORT, this mounting system unlocks seamless cross-compatibility among S-PORT-supported Gremsy gimbals and payloads (like VIO & ZIO). It empowers professionals to quickly twist and release between these dedicated solutions, no tools, no hassle.
Smarter Geotagging, Faster Operation
Everything TAG-E automates so your pilots capture mission-ready data on the first flight.

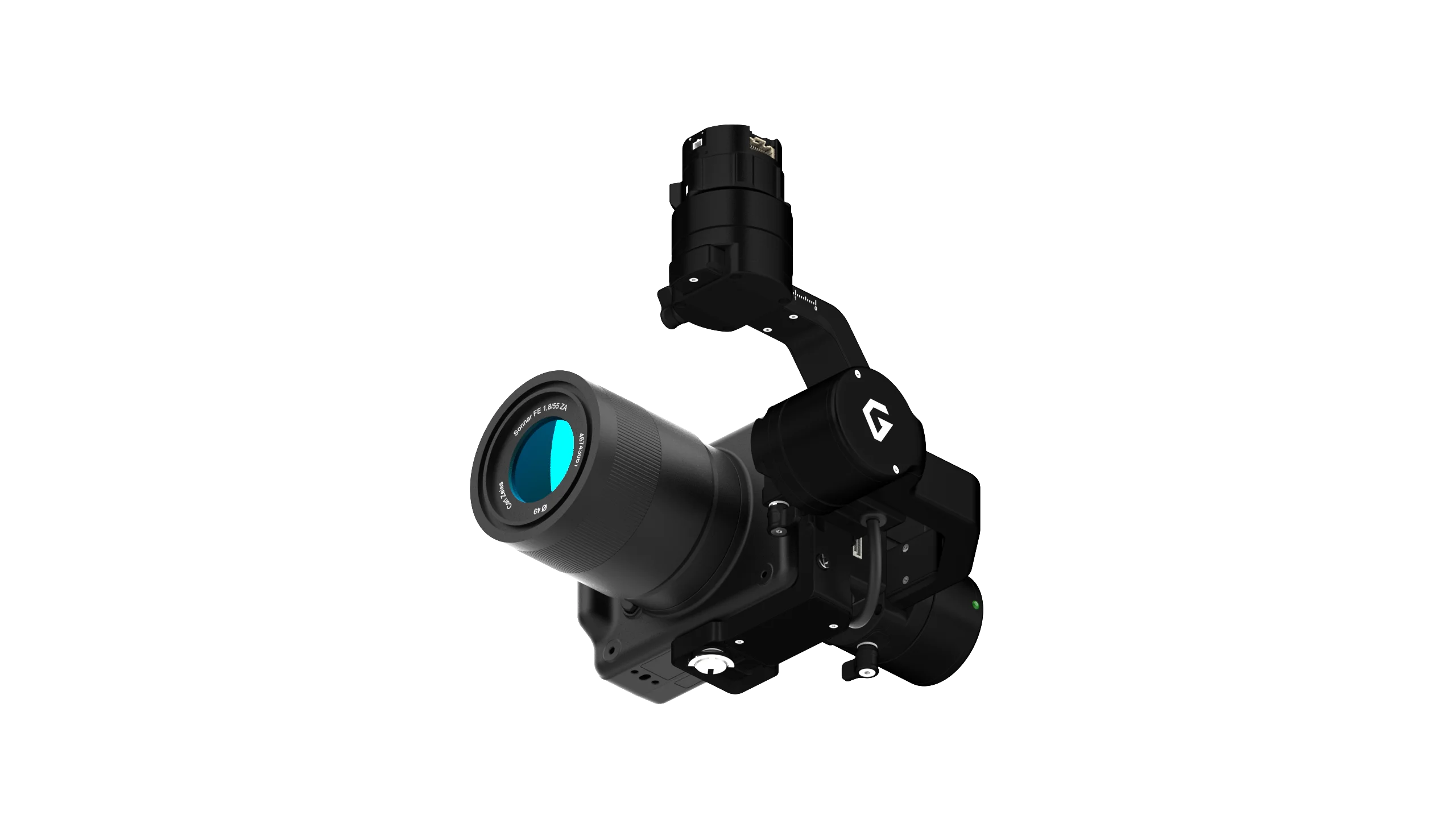

Lightweight 462g with S-PORT Mechanism
Optimized for extended flight times and features Gremsy’s innovative S-PORT Quick Release, enabling plug-and-play integration with multiple payloads across the ecosystem, including ZIO and VIO.
Full Camera Control of Sony ILX-LR1
Simplified interface via USB-C connection for faster UAV operation, providing full control through a simple interface, without requiring additional development.
EXIF Photo & Movie Geotagging
Automatically embed GPS and flight data into photo EXIF metadata and generate SRT files with video telemetry, simplifying post-processing and mapping workflows.
Control Standard
Seamless camera control through MAVLink Camera Protocol V2, compatible with QGroundControl and MAVCAM, and validated with ArduPilot and PX4 platforms, including Pixhawk and CubePilot.
Precision Time Synchronization
TAG-E integrated to the gimbal, synchronizes the camera with precise UTC time from a PPS-capable GPS/RTK source for accurate geotagging. It also automatically updates the camera’s clock and time zone using GPS data.
Engineered for Industrial Operations
With geotagged imagery captured in flight, Pixy LR S-PORT V2 turns raw survey data into accurate deliverables faster - ideal for demanding photogrammetry and asset-inspection missions.

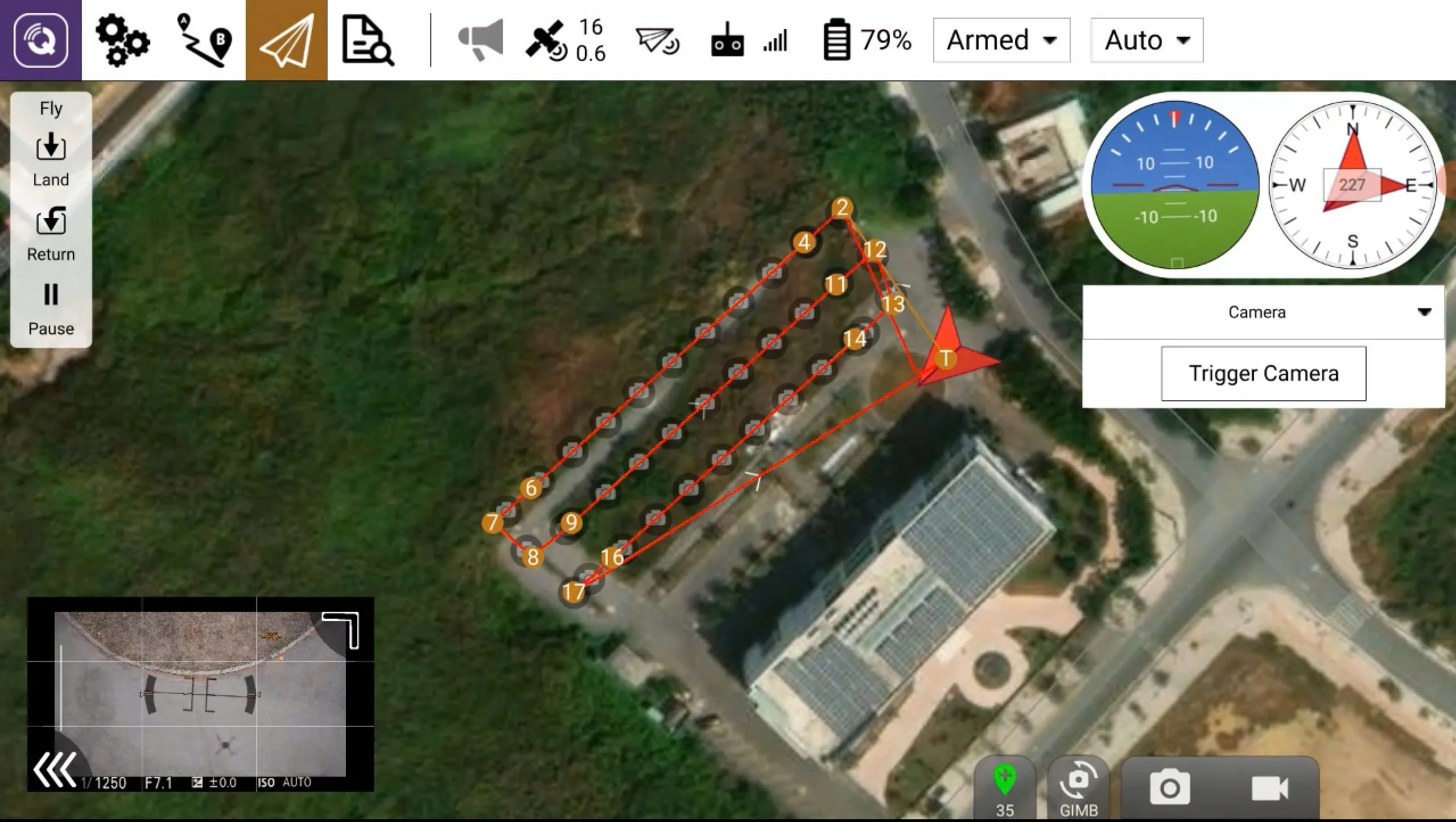

Orthomosaic Mapping
HIGH-VOLTAGE INSPECTION

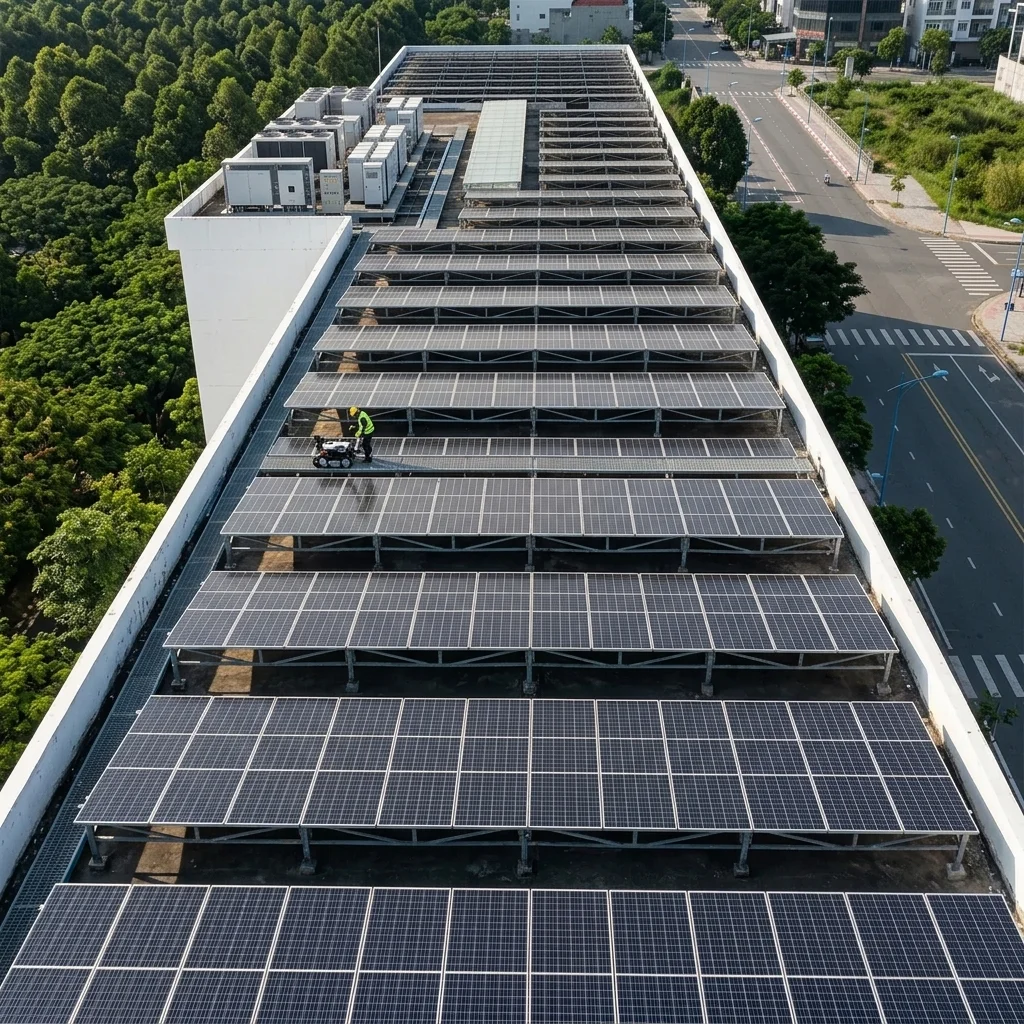

ENERGY INSPECTION
SURVEYING
INDUSTRIAL INSPECTION

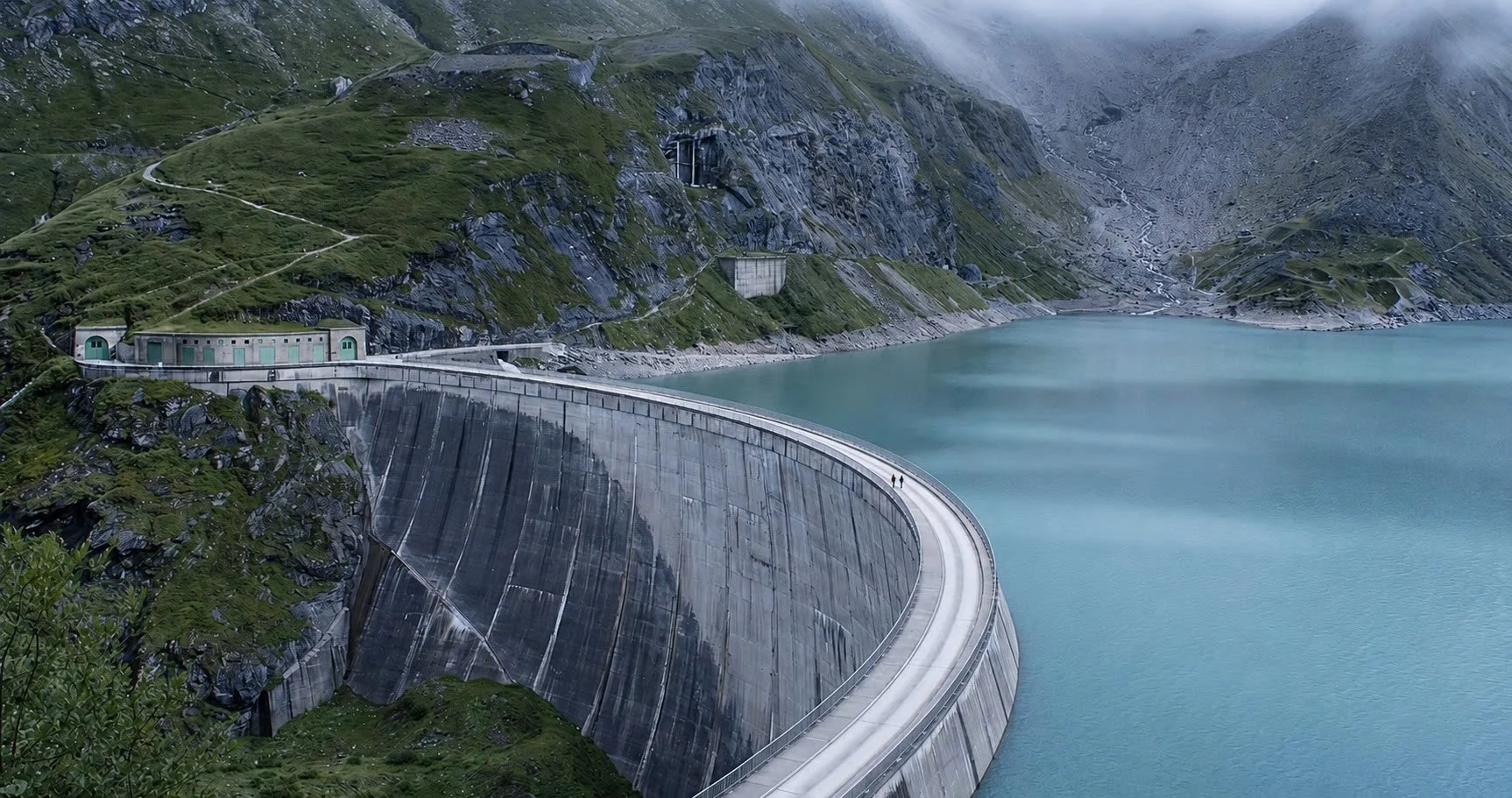

Infrastructure Inspection
Pixy Line for Sony Cameras
Pixy LR S-Port V2
|
Pixy LR S-Port
|
Pixy LR
|
|
|---|---|---|---|
| Supported Camera | Sony ILX-LR1 | Sony ILX-LR1 | Sony ILX-LR1 |
| Weight | 462g (1lb) | 462g (1lb) | 495g (1 lbs) |
| Dimension (D×W×H) | 140 × 115 × 183 (mm) | 140 × 115 × 183 (mm) | 140 × 115 × 200 (mm) |
| Supported Lenses | SEL35F28Z, SEL35F18F, SELP1635G, SEL28F20, SEL55F18Z, SEL85F18, SEL24F28G, SEL50F25G, SEL40F25G | SEL35F28Z, SEL35F18F, SELP1635G, SEL28F20, SEL55F18Z, SEL85F18*, SEL24F28G, SEL50F25G, SEL40F25G | SEL35F28Z, SEL35F18F, SELP1635G, SEL28F20, SEL55F18Z, SEL85F18*, SEL24F28G, SEL50F25G, SEL40F25G |
| Drone Platforms | Pixhawk / CubePilot | Pixhawk / CubePilot | Pixhawk / CubePilot / Skynode / M600 / Airpeak |
| Connections | |||
| USB | N/A (integrated with Airpixel’s Tag-E) | N/A (integrated with Entire) | 3.0 |
| CAN | |||
| AUX | 4 signals | 4 signals | 4 signals |
| UART | |||
| HDMI | |||
| SBUS / PPM | N/A | N/A | |
| Damping | Pixy S/LR Damping | Pixy S / LR - Damping | Pixy S / LR - Damping |
| Quick Release | S-Port (Mio Quick Release) | S-Port (Mio Quick Release) | Hyper Quick Release 3.0 |
*Photography only | **Video stream via DJI Skyport V2
