GREMSY INTRODUCES G-HADRON SOLUTION FOR DRONE INTEGRATORS

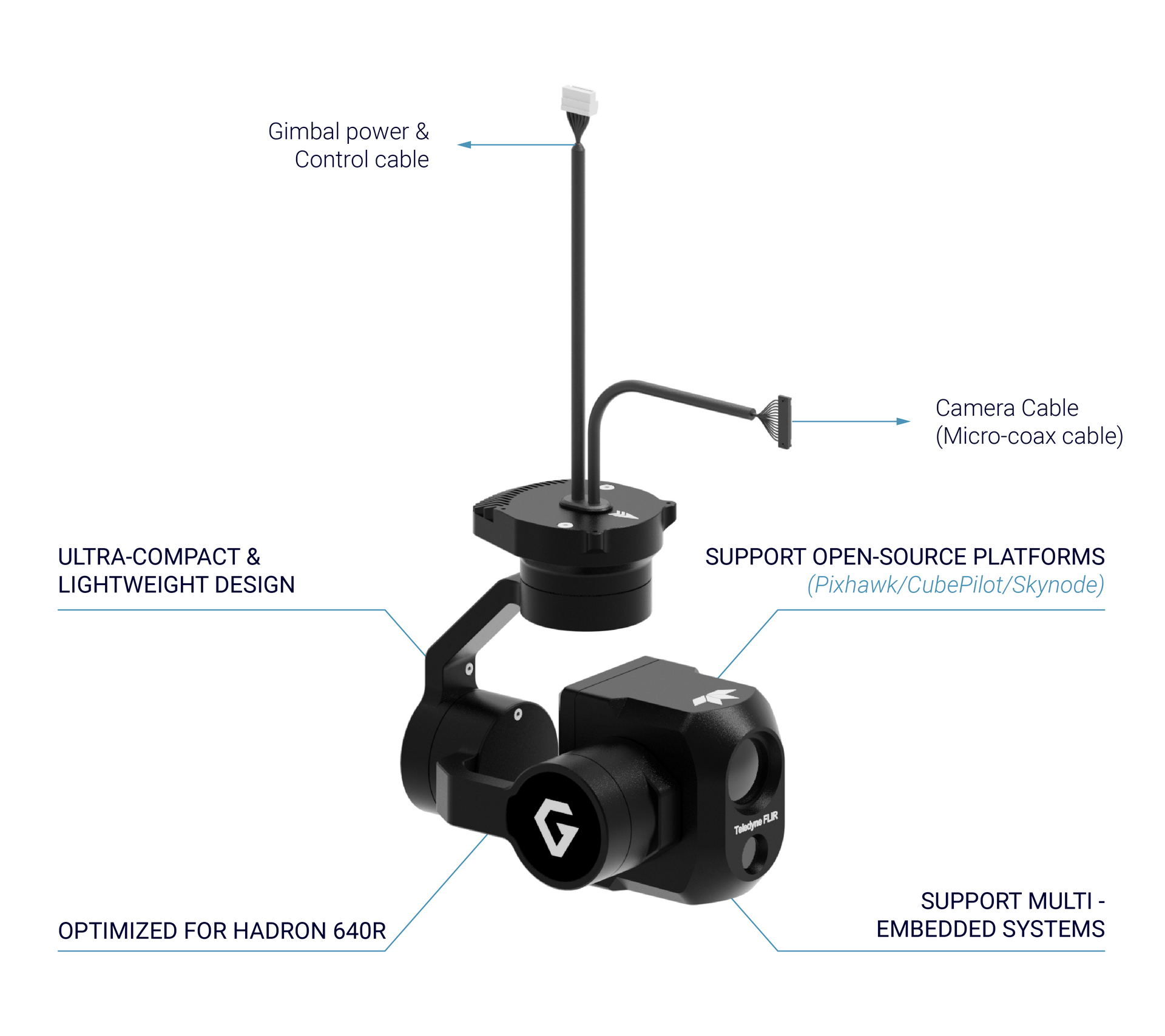

G-HADRON GIMBAL
G-Hadron is the ultimate compact and lightweight gimbal, perfectly designed to carry the high-performance dual thermal and visible camera module - Hadron 640R. With its optimized size and weight, G-Hadron ensures a plug-and-play setup for the Hadron 640R.
QUICK SPECIFICATIONS
| Gimbal Weight | 164g/0.36 lbs |
| Gimbal Dimension (DxWxH) | 90mm x 63mm x 98mm |
| Connections | USB 2.0, UART, Sbus |
| Supported Drone Platforms | Pixhawk/Cube Pilot/Skynode |
| Supported RCs | QGroundControl (*Recommended: Herelink) |
| Gimbal Modes | On/Off, Follow mode/ Mapping mode |

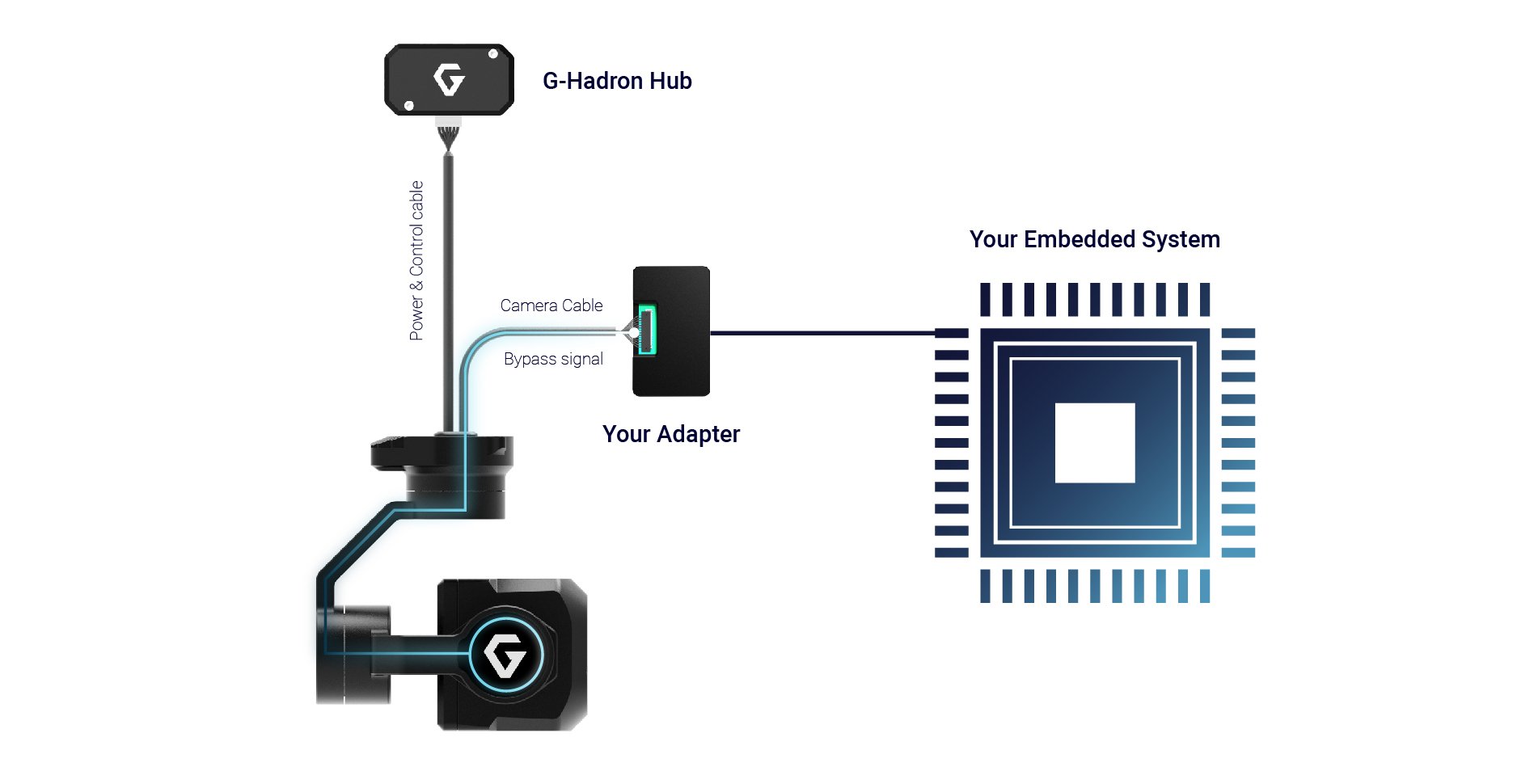

BUILT FOR INTEGRATORS
Unlock exceptional stabilization capabilities for thermal and visible imaging by integrating G-Hadron with your embedded system.
GET READY WITH RB5 ADAPTER FOR QUALCOMM RB5–OWNERS

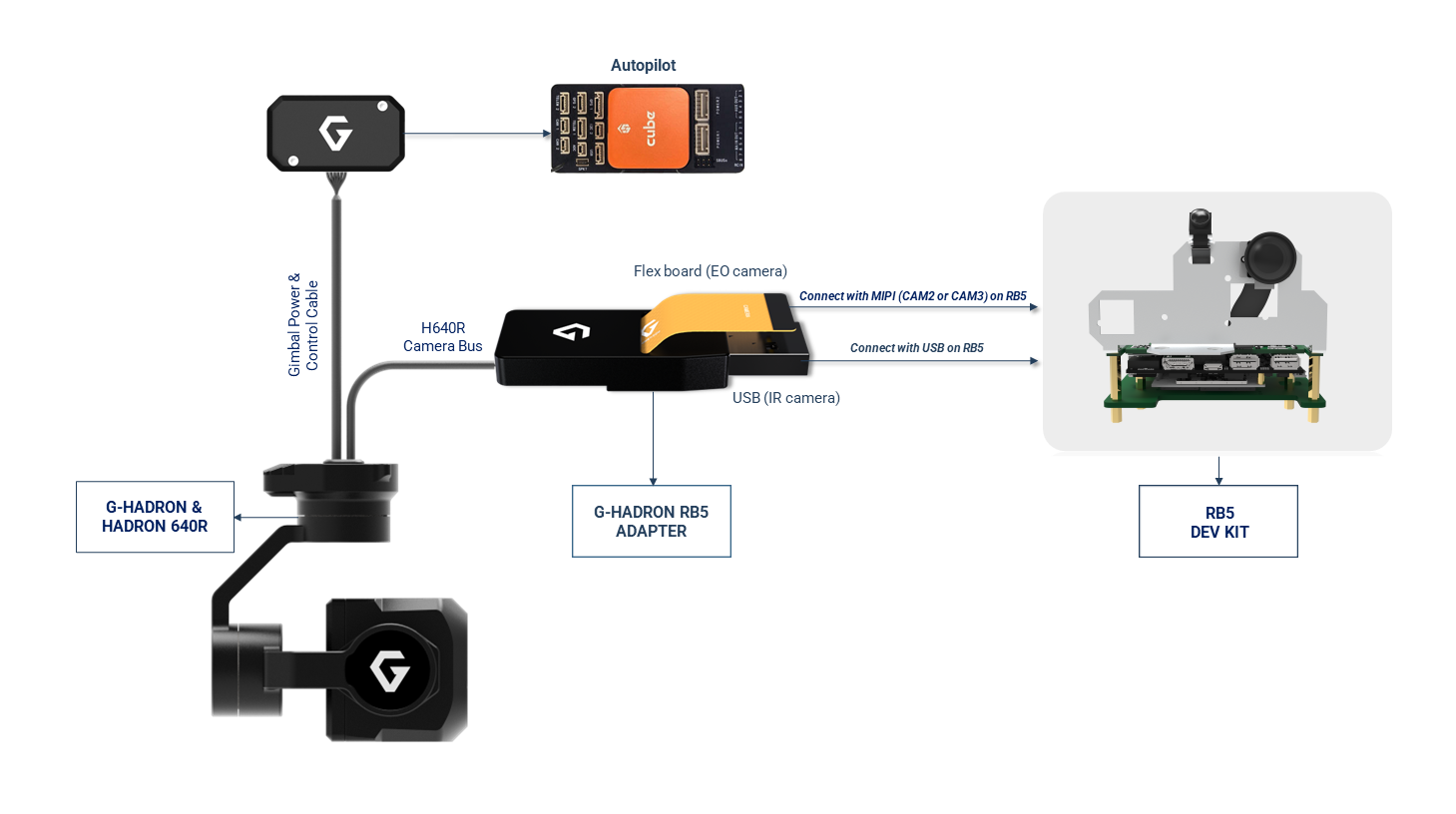

The G-Hadron RB5 Adapter streamlines Hadron 640R imaging and control, cutting development time and expenses. It links G-Hadron and the RB5 Development Kit, facilitating H640R camera signal transfer via USB (IR) and MIPI (EO). See the diagram below for connecting the G-Hadron RB5 Adapter to the RB5 Development Kit.

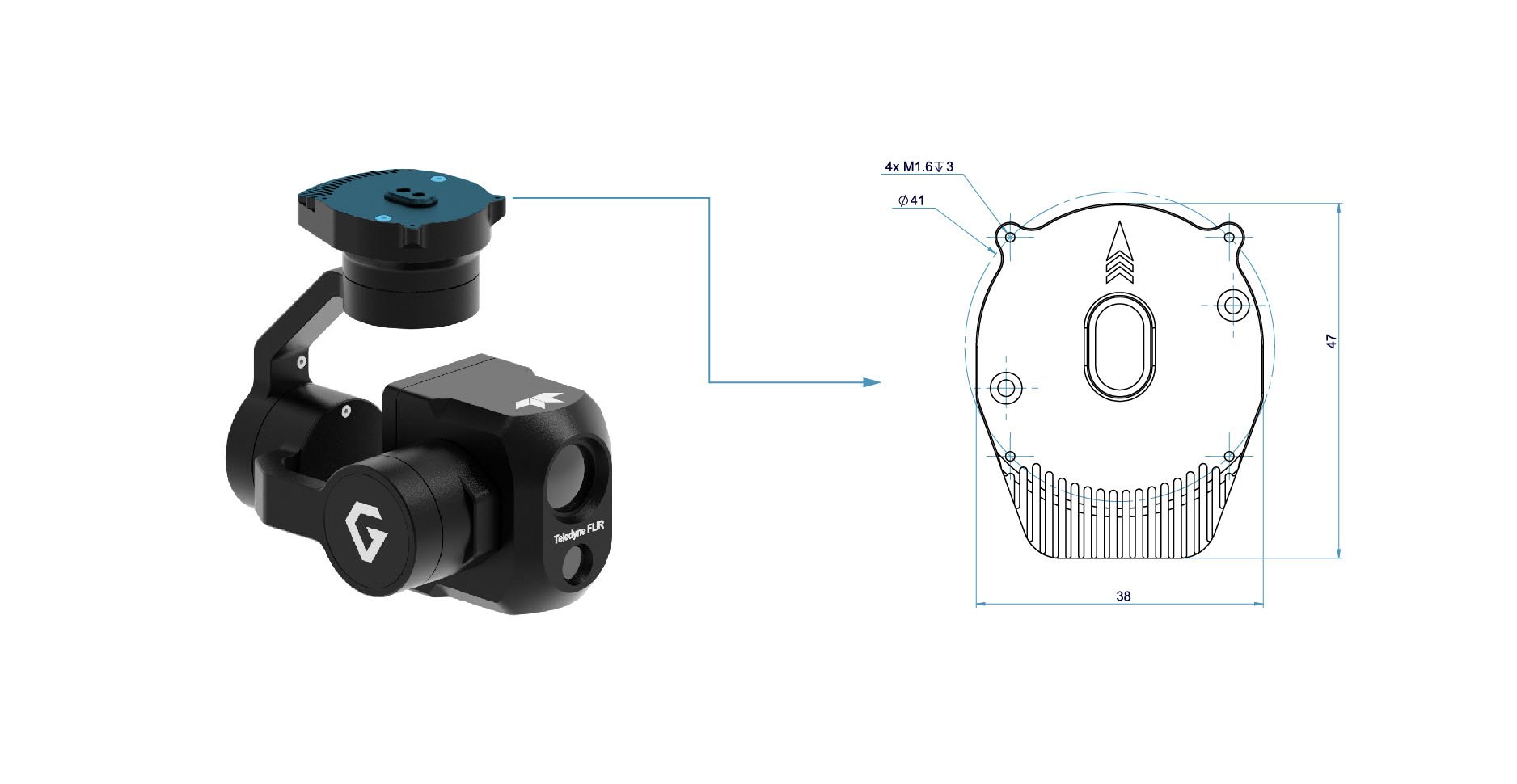

MOUNTING WITH YOUR PLATFORMS
Use Standard Damping: The G-Hadron's standard damping system, weighing just 42g, is engineered to ensure suitability across various drone models weighing over 1 kg.
Custom Damping For Your Drones: Reach out to us if you’d like to request a tailored damping system for your drone or find mounting specifications to build your own.
HOW TO ORDER
Kindly provide your request below for personalized assistance from our dedicated sales team.
